ESHX240V30016-ctp is 2.4 inch TFT display module, resolution is 240x320, MCU 8/16 BIT interface, brightness is 300c/d, view angle is free and with touch panel
A:Product Parameter
| Part NO. | ESHX240V30016-ctp |
| Panel size | 2.4 inch TFT display module |
| Resolution | 240x320 |
| Viewing Angle | 12 o'clock |
| Operation Temperature | -20~70 |
| storage temperature | -30~80 |
| Panel Size(mm) | 42.72(W) x60.26(H)x2.3(D) |
| Active Area (mm) | 36.72(W) × 48.96(H) |
| Brightness(cd/m2) | 300c/d |
| Interface | MCU 8/16 BIT |
| drive IC | ILI9341V |
| Touch panel | CTP |

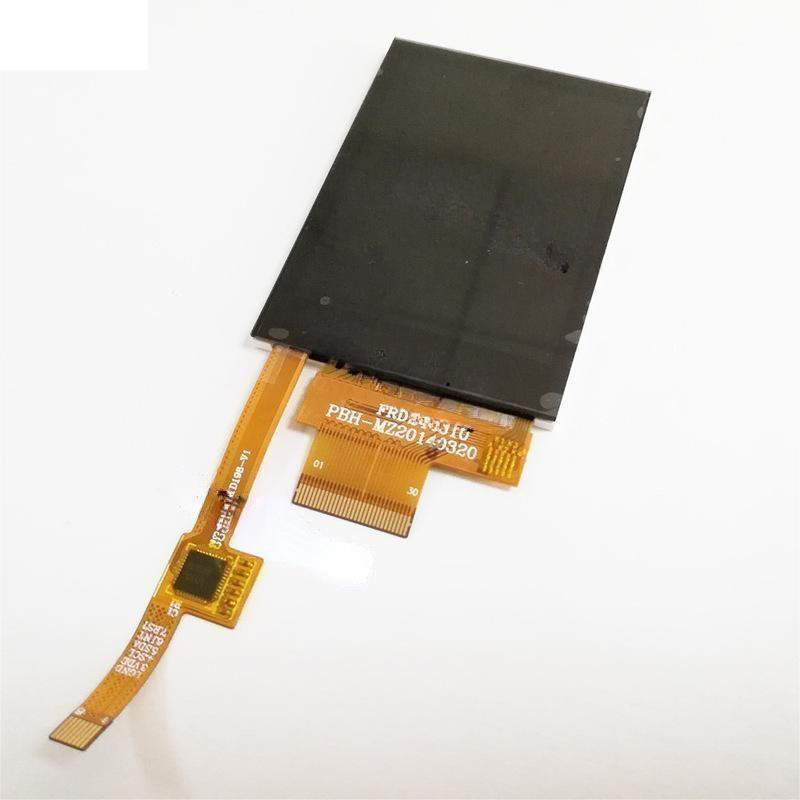

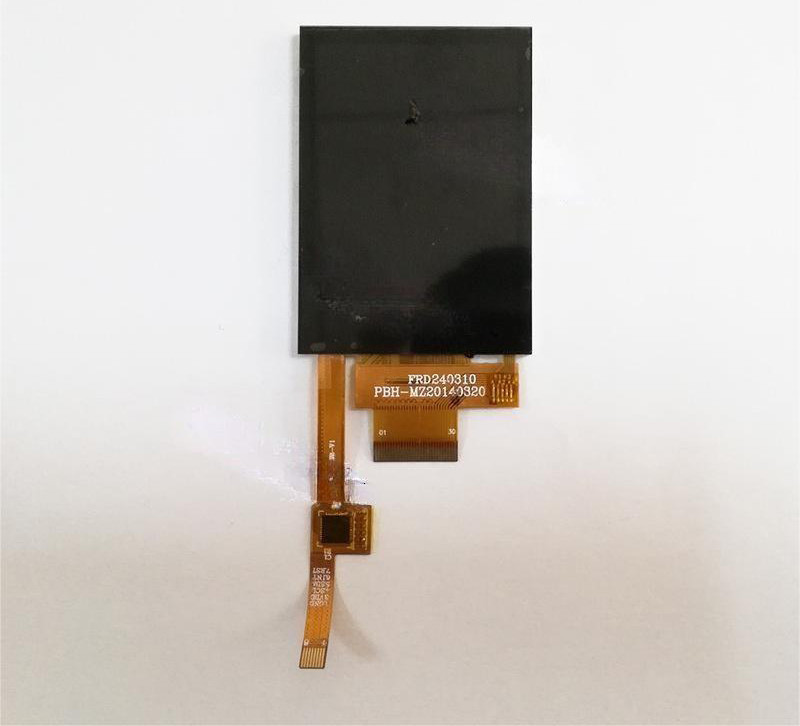

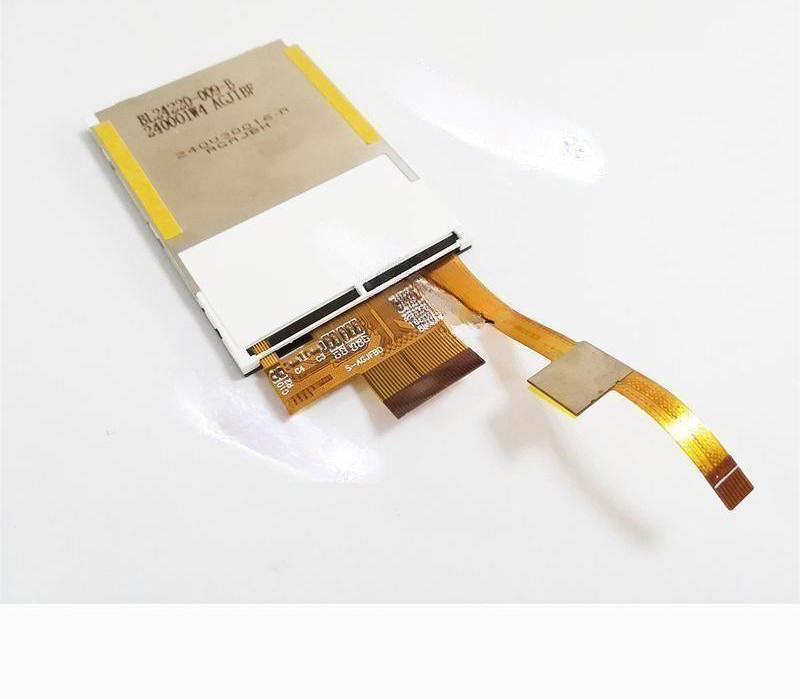

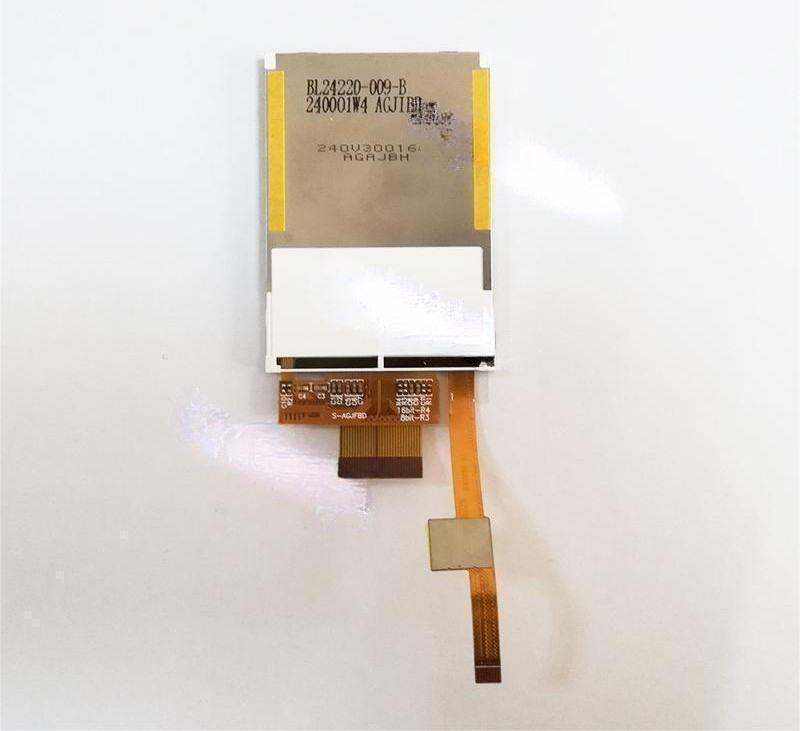

B:Product Picture
C:Drawing
D:TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
